Seiko Instruments has developed an ultra-small motor with a diameter of only 0.95mm

Seiko Instruments (SII, Headquarters: Chiba City) and the Tokyo University of Agriculture and Technology Gucheon Research Laboratory jointly developed a small motor with a diameter of only 0.95mm. The development was based on the invention of the Honorary Professor of the Capital University of Tokyo, Shouya Masaru, and the head of the Department of Technical Management Research at the Graduate School of Tokyo University of Agriculture and Technology, Professor Gu Chuanyong. At the time of development, Seiko Instruments applied processing techniques accumulated during the development and production of watches.



The original small motor, such as an electromagnetic motor, is difficult to reduce the diameter to less than 1 mm due to the limitation of the size of the coil and the magnet. In addition, the ultrasonic motor needs to work hard on the arrangement of the piezoelectric element and the supercharging mechanism, and there is also a problem that the miniaturization space is limited.



The newly developed motor can be classified as a type of ultrasonic motor. Specifically, an ultrasonic oscillation source is provided outside the motor. A wire having a diameter of 50 μm is used as a waveguide, and the columnar rotor that contacts the stator is rotated by propagating ultrasonic waves to the coil stator of the tip end. Compared with the original motor, it is not only simple in construction, but also has a small number of components, and can be easily miniaturized. In addition, instead of transmitting an electrical signal to the motor, the vibration is transmitted directly to the motor for rotation, and this configuration also enables rotation in the liquid. In terms of the wire as the guide wave of the watch, the Seiko instrument uses the Spron material developed for the mechanical watch clockwork.



The product developed this time does not include the rotor shaft with a length of 3.6 mm and a rotational speed of 2000 to 4000 rpm. The torque is below 0.2 μN·m. In the future, we will further improve the characteristics of our motors and strive to be used in various fields.

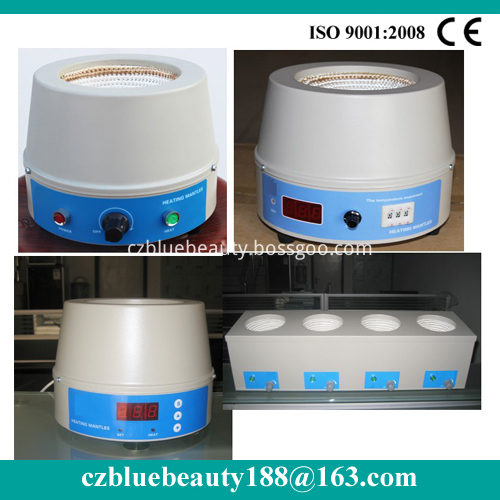

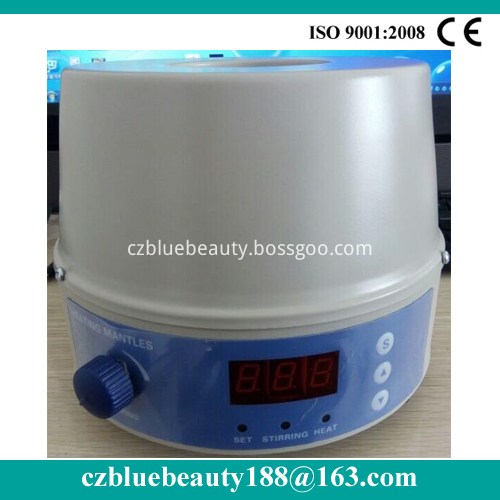

we have all kinds of  heating mantles ,you can choose the model you need,  Heating Mantle is one of the laboratory general heating apparatus,  with non-alkali glass fiber and metal heating wire formulation of hemispherical heating inner sleeve and a control circuit,  used in glass containers more accurate temperature control of heating.  Has quick heating,  high temperature,  easy to operate, durable characteristic, heating mantle is the most ideal do precise temperature control heating test instrument.  Looking forward to your inquiry.

Characteristics:



1.  Cold rolling sheet stretching and spraying exterior.

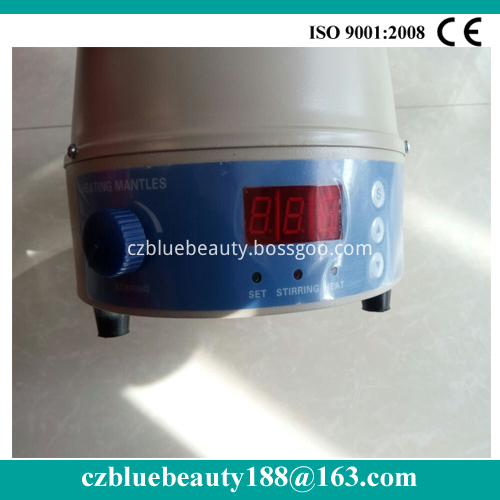

2.  Auto temperature control,  digital display and with stirring function, with characteristics of large heating area,  fast warm-up,  high temperature evenness,  accurate tem-control,  time and cost saving.

3.  Heating and stirring can be used simultaneously,  stepless speed adjustment.

4. Featured by anti-corrosion,  age-resistant,  curable and safe.

5.  Adjustable Sensor Rack with Stainless Rods.



 Main parameters:



Model	98-II-B
Capacity(ml)	100	250	500	1000	2000	3000	5000	10000	20000
Voltage(V)	220V / 50HZ
Max. use temp.(℃)	450℃
Power(W)	100	150	250	350	450	600	800	1200	2400
Speed (r.p.m)	0 ~ 1400
Working time	continuous
Exterior Size (mm)	dia220*165			dia280*220	dia330*230	dia340*245	dia350*250	dia425*320	5500*510*390
Packing Size (mm)	230*215*195			280*280*300	345*290*350	365*365*295	390*390*310	470*470*380	540*540*420
N.W. (kg)	2.5			5.5	6.5	7.5	8.5	9.8	21
G.W. (kg)	2.8			6	7	8	9.2	12	26
We can produce different size heating mantle as customers inquiry. For example:50 liters, 100 liters, 200 liters and etc

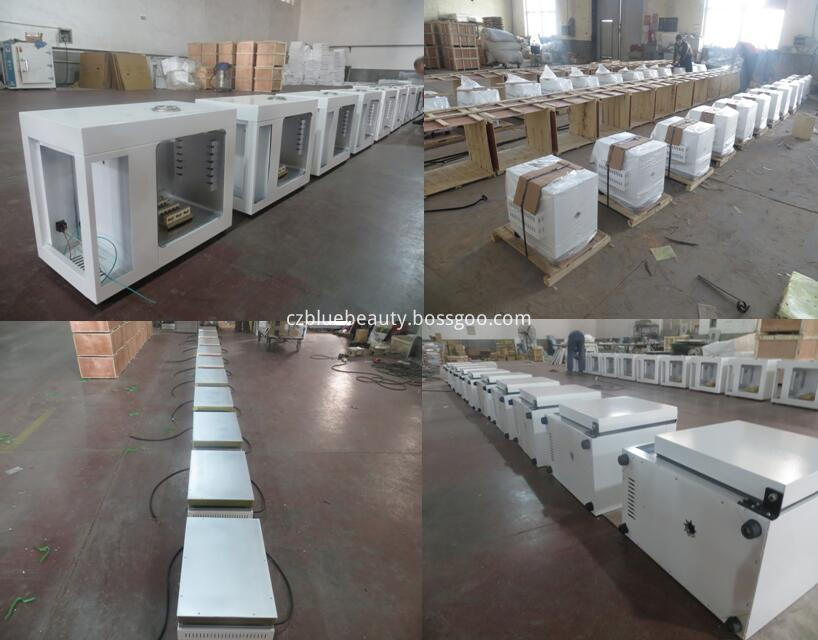

Factory:

Heating Mantle

Heating Mantle,Electric Heating Mantle ,Heating Mantle With Temperature Controller ,Laboratory Heating Mantle
